Драйвер IGBT
Напряжение изоляции до 5000 В переменного тока
Диапазон рабочих температур: от -40 ℃ до +85 ℃
Высокий КПД до 87%
Самовосстановление, постоянная защита от короткого замыкания
Диапазон рабочих температур: от -40 ℃ до +85 ℃
Высокий КПД до 87%
Самовосстановление, постоянная защита от короткого замыкания
Подробнее
| Серия документов | Сер. № | Корпус | Входной диапазон напряжений(В DC) | Vo1 (В постоянного тока)/Io1 (мА) | Vo2 (В постоянного тока)/Io2 (мА) | Изоляция |

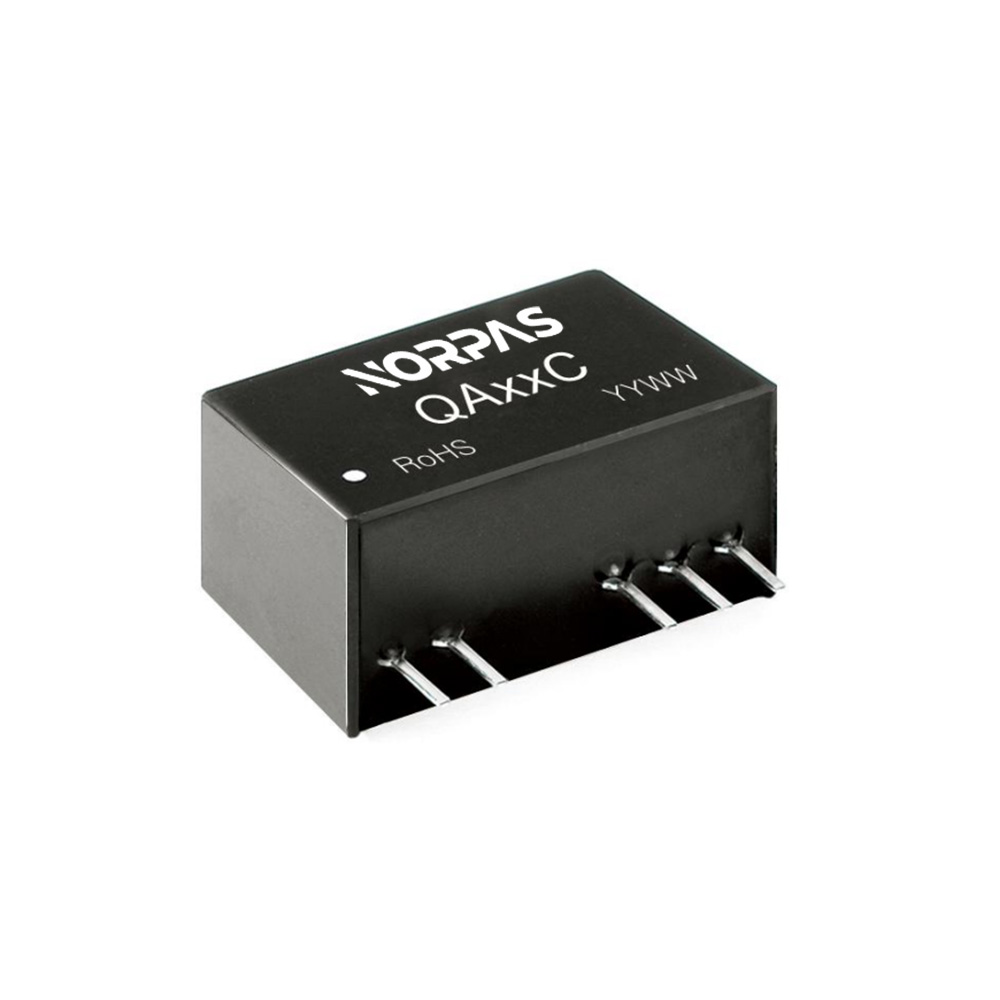

| QAxCx | QA121C2 | SIP | 12V(10.8-13.2) | 15V/111mA | -3.5V/-111mA | 3.5KVAC/6KVDC |
| QA01C | SIP | 15V(13.5-16.5) | 20V/100mA | -4V/-100mA | 3.5KVAC/6KVDC | |
| QA2401C-20 | SIP | 24V(21.6-26.4) | 20V/100mA | -4V/-100mA | 3.5KVAC/6KVDC | |
| QAxx | QA01 | SIP | 15V(14.5-15.5) | 15V/80mA | -8.7V/-40mA | 3KVAC/5KVDC |
| QA03 | SIP | 24V(23.3-24.7) | 15V/80mA | -8.7V/-40mA | 3KVAC/5KVDC | |
| QA04 | SIP | 12V(9-15) | 15V/100mA | -8V/-80mA | 3KVAC/5KVDC | |
| QA02 | SIP | 12V(11.6-12.4) | 15V/80mA | -8.7V/-40mA | 3KVAC/5KVDC | |
| QA241 | SIP | 24V(22.8-25.2) | 15V/120mA | -8V/-120mA | 3KVAC/5KVDC | |
| QA01-17 | SIP | 15V(14.5-15.5) | 17V/80mA | -8.7V/-40mA | 3KVAC/5KVDC | |
| QA121 | SIP | 12V(11.4-12.6) | 15V/120mA | -8V/-120mA | 3KVAC/5KVDC | |
| QA151 | SIP | 15V(14.25-15.75) | 15V/120mA | -8V/-120mA | 3KVAC/5KVDC | |
| QAxx3C-R3 | QA243C-1504R3 | SIP | 24V(21.6-26.4) | 15V/120mA | -4V/-120mA | 5KVAC |
| QA123C-1504R3 | SIP | 12V(10.8-13.2) | 15V/120mA | -4V/-120mA | 5KVAC | |
| QA123C-1803R3 | SIP | 12V(10.8-13.2) | 18V/100mA | -3.3V/-100mA | 5KVAC | |
| QA053C-1505R3 | SIP | 5V(4.5-5.5) | 15V/80mA | -5V/-40mA | 5KVAC | |
| QA123C-1502R3 | SIP | 12V(10.8-13.2) | 15V/100mA | -2.5V/-100mA | 5KVAC | |
| QA053C-2004R3 | SIP | 5V(4.5-5.5) | 20V/80mA | -4V/-40mA | 5KVAC | |
| QA053C-1803R3 | SIP | 5V(4.5-5.5) | 18V/80mA | -3.3V/-80mA | 5KVAC | |
| QA153C-1504R3 | SIP | 15V(13.5-16.5) | 15V/120mA | -4V/-120mA | 5KVAC | |
| QA123C-2005R3 | SIP | 12V(10.8-13.2) | 20V/90mA | -5V/-90mA | 5KVAC | |
| QA153C-2005R3 | SIP | 15V(13.5-16.5) | 20V/90mA | -5V/-90mA | 5KVAC | |
| QA243C-2005R3 | SIP | 24V(21.6-26.4) | 20V/90mA | -5V/-90mA | 5KVAC | |
| QAxx3HC-R3 | QA243HC-1504R3 | SIP | 24V(21.6-26.4) | 15V/120mA | -4V/-120mA | 5KVAC |
| QA123HC-1504R3 | SIP | 12V(10.8-13.2) | 15V/120mA | -4V/-120mA | 5KVAC | |
| QAxx3H-R3 | QA123H-1509R3 | SIP | 12V(10.8-13.2) | 15V/100mA | -9V/-100mA | 5KVAC |
| QAxx3-R3 | QA243-1509R3 | SIP | 24V(21.6-26.4) | 15V/100mA | -9V/-100mA | 5KVAC |
| QA153-1509R3 | SIP | 15V(13.5-16.5) | 15V/100mA | -9V/-100mA | 5KVAC | |
| QAxxH-R3 | QA243H-1509R3 | SIP | 24V(21.6-26.4) | 15V/100mA | -9V/-100mA | 5KVAC |
| QA153H-1509R3 | SIP | 15V(13.5-16.5) | 15V/100mA | -9V/-100mA | 5KVAC | |
| QAxxD | QA152D (developing) | DIP | 15V(14.5-15.5) | 15V/200mA | -9V/-200mA | 4KVAC |
| QA243D-2GR3 (developing) | DIP | 24V(21.6-26.4) | 24V/100mA | 24V/100mA | 5KVAC(reinforced insulation) | |
| QA123D-2GR3 (developing) | DIP | 12V(10.8-13.2) | 24V/100mA | 24V/100mA | 5KVAC(reinforced insulation) | |
