DC/DC-преобразователь, мощностью 1~3 Вт, фиксированное напряжение на входе, нерегулируемое напряжени

Защита от короткого замыкания
Широкий диапазон рабочих температур: от -40 °C до +105 °C
КПД до 92%
Ток холостого хода всего 5 МА
Пульсации – всего 20 мВ
Несколько конфигураций корпуса: DIP, SIP, SMD
Двойной и одинарный выходы
Напряжение изоляции: 1500/3000/4000/5200/6000 VDC
Подробнее
Сер. №МощностьДиапазон напряжений на входе (VDC)Напряжение на выходе (VDC)ИзоляцияКорпус
A_D-1WR3‍1 Вт12,15,24±5,±9,±12,±15,±241500VDC14-DIP
A_D-2WR32 Вт5,12,15,24±3.3,±5,±7,±9,±12,±15,±241500VDC14-DIP
B_D-1WR31 Вт3.3,12,15,243.3,5,9,12,15,241500VDC7-DIP
B_D-2WR32 Вт3.3,5,9,12,15,243.3,5,9,12,15,241500VDC14-DIP
E_D-1WR31 Вт5,12,15,24±5,±9,±12,±153000VDC14-DIP
E_D-2WR32 Вт5,12,15,24±3.3,±5,±9,±12,±15,±243000VDC14-DIP
F_D-1WR31 Вт5,12,15,243.3,5,12,153000VDC7-DIP
F_D-2WR32 Вт5,12,15,243.3.,5,9,12.15,243000VDC14-DIP
A_S-1WR31 Вт3.3,5,9,12,15,24±3.3,±5,±9,±12,±15,±241500VDC6-SIP
A_S-1WR3K1 Вт3.3,5,9,12,15,24±3.3,±5,±9,±12,±15,±241500VDC6-SIP
A_S-2WR32 Вт5,12,15,24±3.3,±5,±7.2,±9,±12,±15,±241500VDC6-SIP
A_S-2WR3‍K2 Вт5,12,15,24±3.3,±5,±7.2,±9,±12,±15,±241500VDC6-SIP
B0505S-1WR21 Вт551500VDC4-SIP

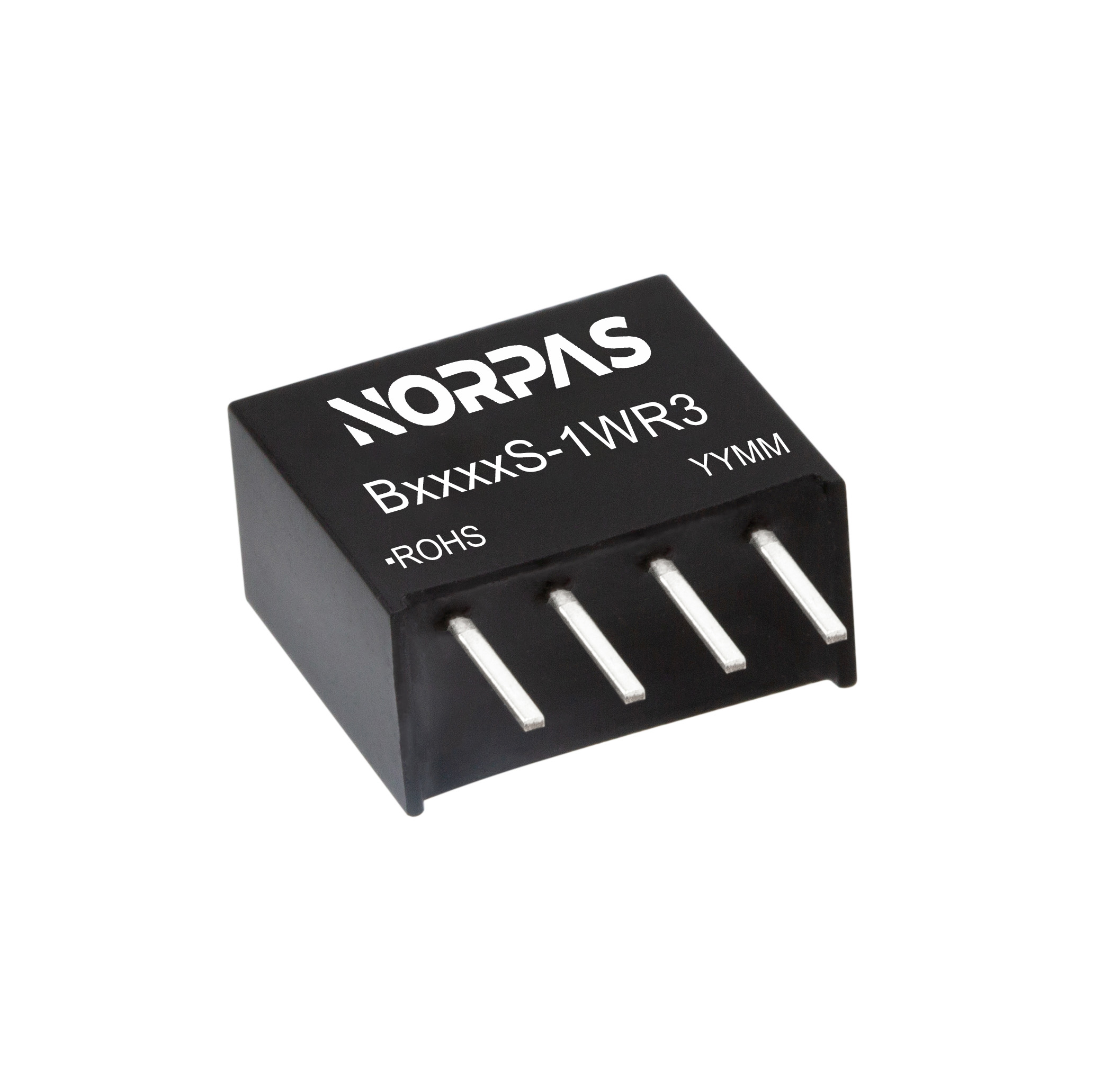

B_S-1WR31 Вт3.3,5,12,15,243.3,5,9,12,15,241500VDC4-SIP
B_S-1WR3‍K1 Вт3.3,5,12,15,243.3,5,9,12,15,241500VDC4-SIP
B_M-2WR32 Вт5,12,243.3,5,12,9,24
1500VDC4-SIP
B_M-2WR3‍AM2 Вт245
1500VDC4-SIP
B_S-2WR32 Вт5,12,15,243.3,5,7.2,9,12,15,241500VDC6-SIP
B_S-2WR3‍K2 Вт5,12,15,243.3,5,7.2,9,12,15,241500VDC6-SIP
A_S-1WR3‍M(-50℃)‍1 Вт3.3,5,9,12,15,24±3.3,±5,±9,±12,±15,±241500VDC6-SIP
A_S-2WR3‍M(-50℃)2 Вт5,12,15,24±3.3,±5,±7.2,±9,±12,±15,±241500VDC6-SIP
B_S-1WR3‍M(-50℃)1 Вт3.3,5,12,15,243.3,5,9,12,15,241500VDC4-SIP
B_S-2WR3‍M(-50℃)2 Вт5,12,15,243.3,5,7.2,9,12,15,241500VDC6-SIP
D_(N)S-1WR31 Вт5,12,245,12,151500VDC7-SIP
D_S-2WR32 Вт12,245,91500VDC7-SIP
E_S-1WR3‍K1 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±243300VDC7-SIP
E_S-1WR31 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±244000VDC7-SIP
E_S-1WR3‍H51 Вт3.3,5,9,12,15,24±3.3,±5,±9,±12,±15,±245200VDC7-SIP
E_S-1WR3‍H61 Вт3.3,5,9,12,15,24±3.3,±5,±9,±12,±15,±246000VDC7-SIP
E_S-2WR32 Вт5,12,15,24±3.3,±5,±9,±12,±15,±243000VDC7-SIP
F_N-1WR31 Вт3.3,5,12,15,243.3,5,7.2,9,12,15,243000VDC7-DIP
F_S-1WR31 Вт3.3,5,12,15,243.3,5,12,15,244000VDC7-SIP
F_S-1WR3‍H51 Вт3.3,5,12,15,243.3,5,12,15,245200VDC7-SIP
F_S-1WR3‍H61 Вт3.3,5,12,15,243.3,5,12,15,246000VDC7-SIP
F_S-1WR3‍K1 Вт3.3,5,12,15,243.3,5,12,15,244000VDC7-SIP
F‍_S-1WR3‍KH5‍1 Вт3.3,5,9,12,15,243.3,5,9,12,15,245200VDC7-SIP
F‍_S-1WR3‍KH6‍1 Вт3.3,5,9,12,15,243.3,5,9,12,15,246000VDC7-SIP
F_S-2WR32 Вт5,12,15,243.3,5,7.2,9,12,15,243000VDC7-SIP
F_S-3WR‍23 Вт5,12,155,9,12,153000VDC7-SIP
G_S-1WR31 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±246000VDC7-SIP
G_S-1WR3‍K1 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±246000VDC7-SIP
G_S-2WR32 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±246000VDC7-SIP
H_S-1WR31 Вт3.3,5,12,15,243.3,5,9,12,15,246000VDC7-SIP
H0505S-1WR3‍K1 Вт556000VDC7-SIP
H_S-1WR3‍K1 Вт3.3,5,12,15,243.3,5,9,12,15,246000VDC7-SIP
H_S-2WR32 Вт3.3,5,12,15,243.3,5,9,12,15,246000VDC7-SIP
H_S-1WR3‍M(-50℃)1 Вт3.3,5,12,15,243.3,5,9,12,15,246000VDC7-SIP
‍G_S-1WR3‍M(-50℃)‍‍1 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±246000VDC7-SIP
H_S-2WR3‍M(-50℃)2 Вт5,12,15,245,12,156000VDC7-SIP
G_S-2WR3‍M(-50℃)‍2 Вт5,12,15,24±5,±9,±12,±156000VDC7-SIP
H_S-2WR3‍K2 Вт5,12,15,245,12,156000VDC7-SIP
G_S-2W‍R3K‍2 Вт5,12,15,24±5,±9,±12,±156000VDC7-SIP
B_LS-1WR31 Вт3.3,5,12,15,243.3,5,9,12,15,241500VDC6-SIP
B_LS-1WR3‍K1 Вт3.3,5,12,15,243.3,5,9,12,15,241500VDC6-SIP
B_LS-1WR3‍M(-50℃)1 Вт3.3,5,12,15,243.3,5,9,12,15,241500VDC6-SIP
A_XT-1WR31 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±241500VDCSMD 10
A05_XT-1WR31 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±241500VDCSMD 10
B05_XT-1WR31 Вт053.3,5,9,12,15,241500VDCSMD 8
B05_XT-1WR3‍K1 Вт053.3,5,9,12,15,241500VDCSMD 8
B_XT-1WR31 Вт3.3, 12,15,243.3,5,9,12,15,241500VDCSMD 8
B05_XT-2WR32 Вт053.3,5,7,9,12,15,241500VDCSMD 8
B_XT-2WR32 Вт 12,15,243.3,5,7,9,12,15,241500VDCSMD 8
E_XT-1WR31 Вт3.3,5,12,15,24±3.3,±5,±9,±12,±15,±243000VDCSMD 10
F_XT-1WR31 Вт3.3,5,12,15,243.3,5,9,12,15,243000VDCSMD 8
F05_XT-2WR32 Вт53,5,7,9,12,15,243000VDCSMD 8
F_XT-2WR32 Вт12,15,245,9,12,15,243000VDCSMD 8
